GET A DETAILED DATA SHEET FOR YOUR FACILITY / PROJECT AND PERSONAL TECHNICAL CONSULTATION ON EQUIPMENT SELECTION

HARDWARE AND SOFTWARE

Using an innovative approach and many years of experience of our specialists and partners in the production of warning systems, taking into account all the challenges of today, we have created modern, reliable and powerful equipment for building warning systems of any scale and complexity, including local (MASCO), local and object.

The equipment is based on our own design solutions and engineering calculations, as well as a reliable modern element base. Based on the results of design, modeling and numerical tests, the optimal shape and alloy from which the horn part of the slot loudspeaker is made, as well as design features that allow achieving truly incredible results and indicators in terms of power and fault tolerance, have been worked out.

Yes, in a sense, we have somewhat abandoned the sophistication of the design in favor of brutal aesthetics, which fully corresponds to the realities of the time and the actual conditions of operation of the equipment, but thanks to this, our equipment confidently surpasses most of the analogues on the market by 30-40% in terms of some indicators of power and autonomy, while maintaining an absolutely affordable price.

The equipment of our production is successfully operated at facilities and is used as optimal design solutions when designing local centralized alarm systems, as it requires up to 35% fewer equipment placement points, and accordingly, fewer works on connecting communications, installation and subsequent service work. The equipment line is not complicated by additional elements – only a few intuitive functional blocks that allow you to build and scale the alarm system to any coverage area, remotely control the system from different locations, and also provide integration with third-party equipment and other alarm systems. Guided by the principles of universality and adaptability, each element of the system has the ability to expand its own functionality depending on the specifics and tasks of the project. The use of three independent communication channels and an intelligent uninterruptible power supply system guarantee maximum fault tolerance.

In 2024, the equipment passed a full range of tests and certification and was recognized as better in most indicators compared to well-known analogues presented in Ukraine.

Despite this, we are constantly developing our own technologies, which already today allows us, for example, thanks to the universal integration protocol, to ensure interaction with equipment from third-party manufacturers, territorial automated centralized alert systems (TASCO), local and object alert systems. Thanks to our own integration devices, the possibility of interaction with equipment already operated by the customer without the need to replace it has been implemented, which will allow significant savings, for example, when modernizing alert systems. And the implemented bidirectional algorithm for digitizing/decoding voice messages generally allows you to intercept and process any voice message in any form.

MAIN COMPONENTS OF AN AUTOMATED NOTIFICATION SYSTEM

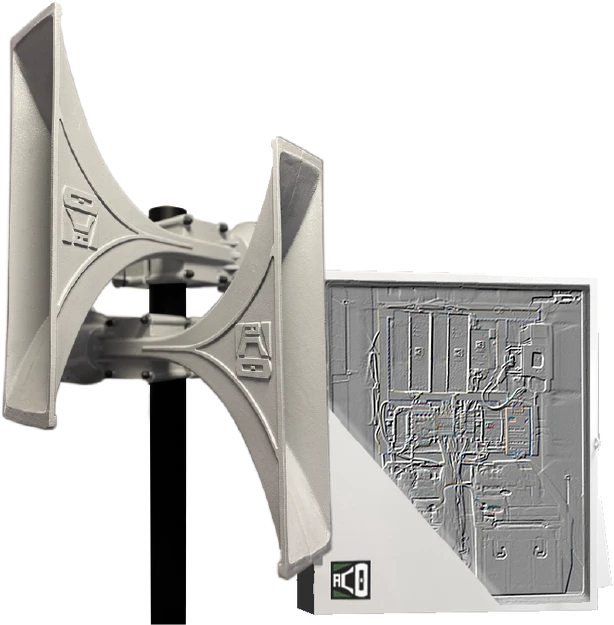

ANNOUNCEMENT STATION

Is intended to create a local alert zone and automatically deliver warning signals of danger “ATTENTION EVERYONE!” and voice messages to the population.

Characteristics (basic equipment СО – BASE)*:
Power supply: 120 – 264 V, 50 Hz
Output rated power: 400/800/1200 W
Number of speakers: 2/4/6
Sound pressure level at a distance of 30 m
with one-way speaker direction: 118.7/114.7/117.3 dB
Backup power: 24 V battery

Duration of operation on backup power:
– in standby mode: at least 24 hours
– in alert mode: at least 30 min.
Operating temperature: from – 25 °C to + 55 °C.

Additional features:
Optionally, it can be equipped with:
– auxiliary manual start cabinet with “Start”/”Stop” buttons
– backup power: solar batteries

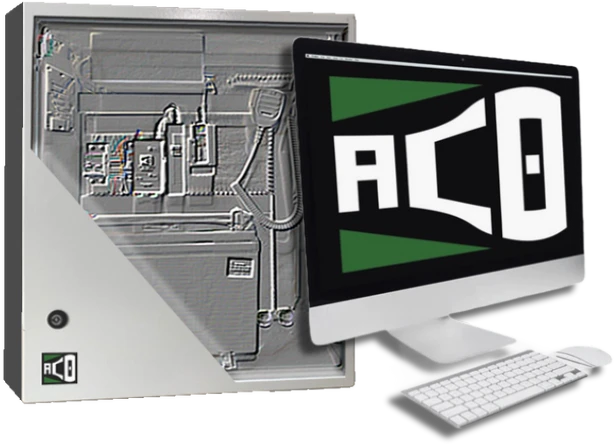

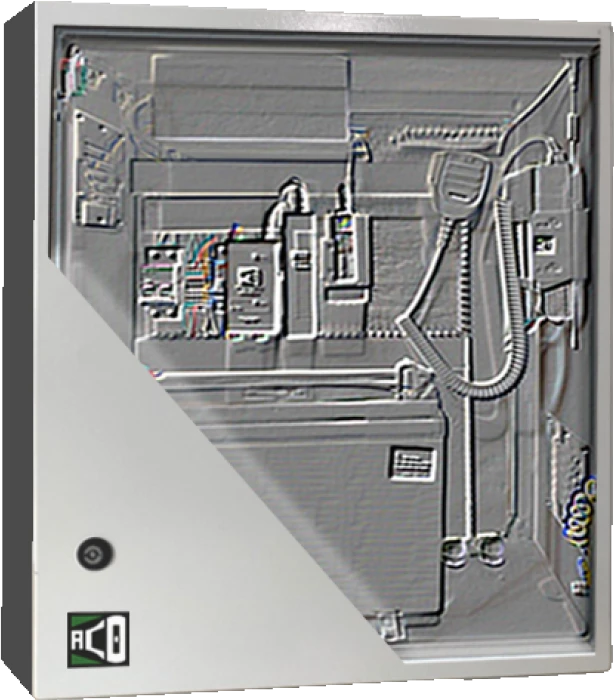

SYSTEM CONTROL STATION

A hardware and software complex that provides automated transmission of commands to warning stations to bring to the attention of the population the warning zone created in a certain area, warning signals of danger “ATTENTION EVERYONE!” and voice messages, guaranteed notification of the management of local executive bodies, local governments, enterprises, institutions and organizations.

Characteristics (basic equipment СО – BASE)*:
Power supply: 120 – 264 V, 50 Hz
Power supply with UPS function: 400 W
Backup power: 12 V battery
Duration of operation on backup power:
– in standby mode: at least 24 hours,
– in alert mode: at least 30 min.
Communication channels: Ethernet, GSM (LTE), DMR radio.
Operating temperature: from – 25 °C to + 55 °C.

Additional features:
Optionally can be equipped with:
– communication channels: satellite communication
– backup power: solar batteries

CONTROL PANEL

A hardware and software complex that provides operational control of the alert system.

Functionality:
– selection of groups or notification zones,
– identification and visualization of notifications,
– monitoring of the power supply status of notification stations,
– monitoring of communication channels, temperature, opening of cabinets,
– selection of recorded voice messages
– configuration of system parameters.

Additional features:
Optionally, it can be made in different form factors
and include additional elements.

* Only some of the characteristics of the basic configuration of the devices are listed. Other configurations and modifications of the equipment may have better characteristics and performance.

CERTIFICATION AND TESTING

In 2024, the equipment underwent a full range of tests and certification and was recognized as the best in comparison with well-known analogues presented in Ukraine in most indicators.

For this purpose, before the main tests in certified and accredited testing centers, long-term multi-stage specialized tests of both ready-made equipment packages and individual elements were also carried out. The tests were carried out with the participation of the design team with step-by-step adjustment and improvement of technical solutions to improve the characteristics of the equipment.

For our partners, the equipment or its individual elements can also be made to order, taking into account the specifics of the project being implemented or individual requirements for the performance of the equipment in order to achieve the best result. At the same time, the reliability and quality of our element base and components allow our partners to easily create and produce ready-made equipment of their own packages and modifications for the construction of centralized notification systems, which has the same excellent indicators and also successfully passes any tests and certification.
